Dark Fix Max

Recessed spotlight with a compact design dedicated to professional lighting design, designed to achieve maximum performance in the smallest size, equipped with the new Revo optical system, with ‘Cross-Beam’ technology, it allows extraordinary efficiency and precise beam projection in just 96mm diameter size.

The Dark family in all its versions stands out for its very high visual comfort and for the Lux / Watt ratio that it manages to deliver while maintaining retrospective illumination factors between wattage/power and dimensions.

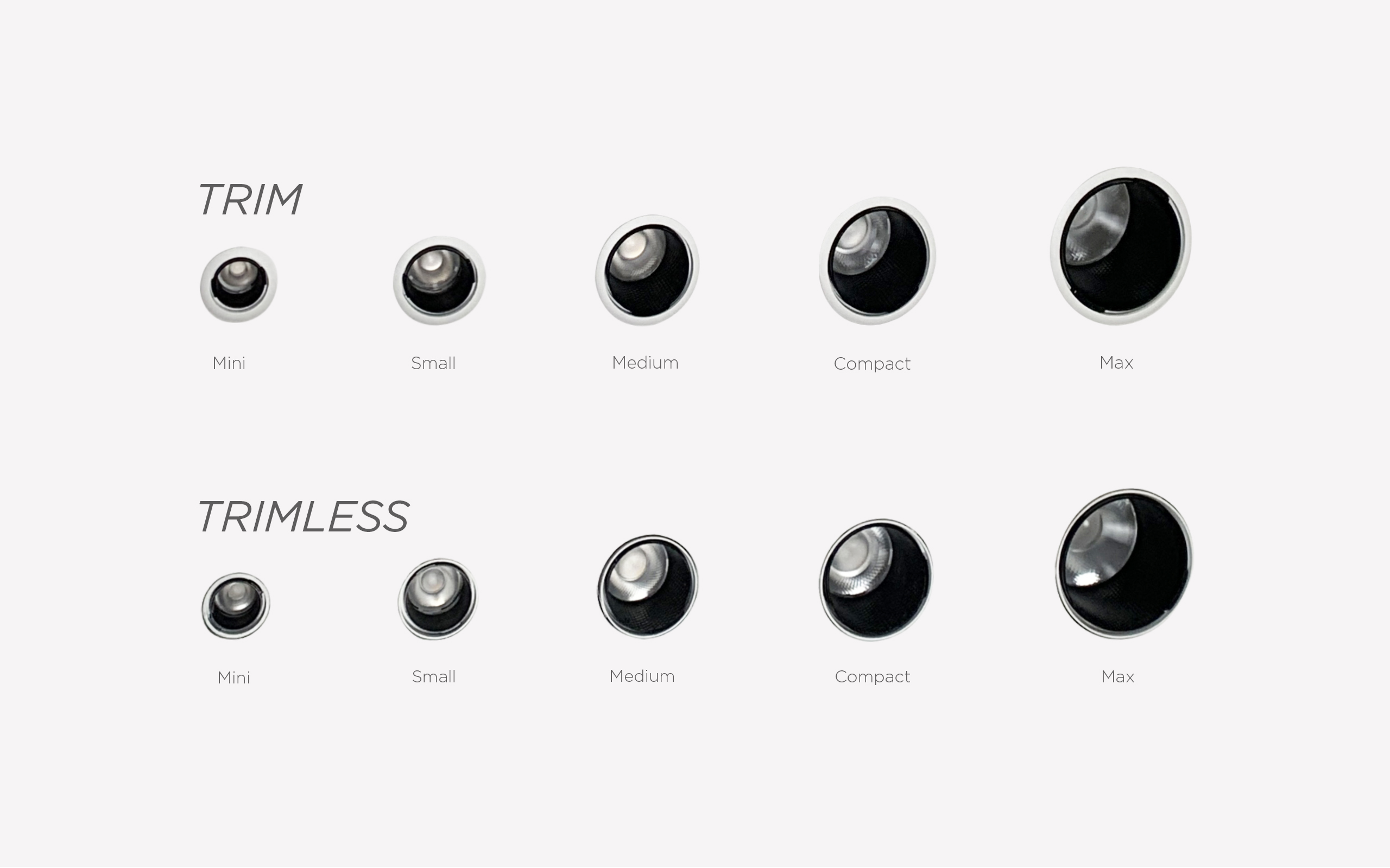

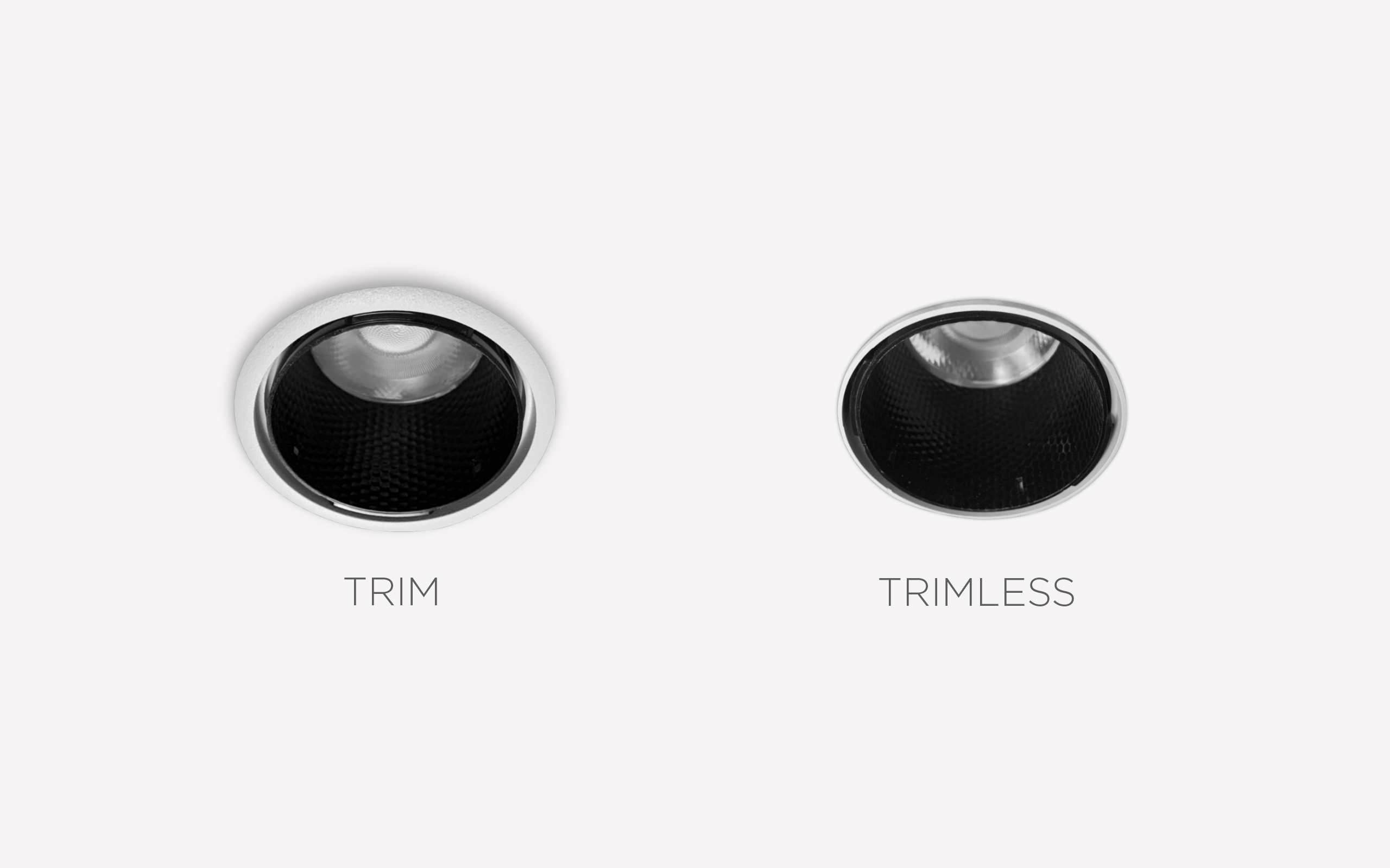

Available in single square and round versions, it offers a wide range of symmetrical and asymmetrical optical options.

Specifications

CCT	2700K 3000K 3500K 4000K
Certification	CE Compliance
Isolation class	Class III
Class F	YES
CRI	92 98
Incandescent wire	650°
Warranty	5 years
Protection class	IP20 internal compartment IP54 optical housing
General/Office Lighting	Low Contrast Flood Low Contrast Wide Flood
Longitudinal and Elliptical Lighting	Elliptical Narrow Spot Elliptical Wide Flood Low Contrast Elliptical Narrow Flood
Accent Lighting	Very Narrow Spot 6° Narrow Spot 11° Spot 16° Narrow Flood 24° Flood 36° Wide Flood 50°
Wall Washer Lighting	Area Washer Grazing Washer
Control System	1-10V CASAMBI DALI EMERGENCY PHASE CUT PUSH
Operating temperature	-10° / +35°
Colour Deviation	2 SDCM
