Spot 230 Revo Max Multimetrik

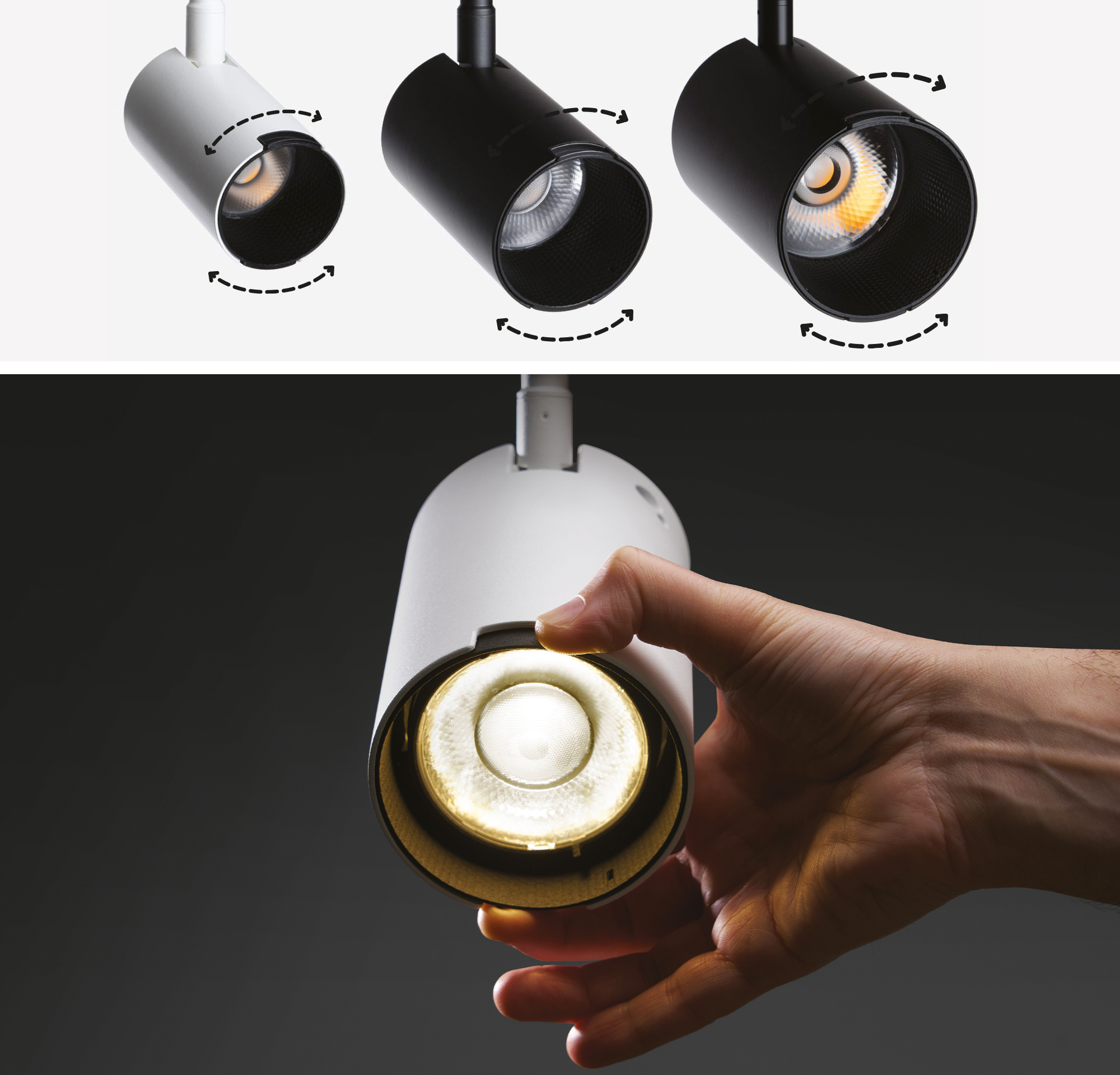

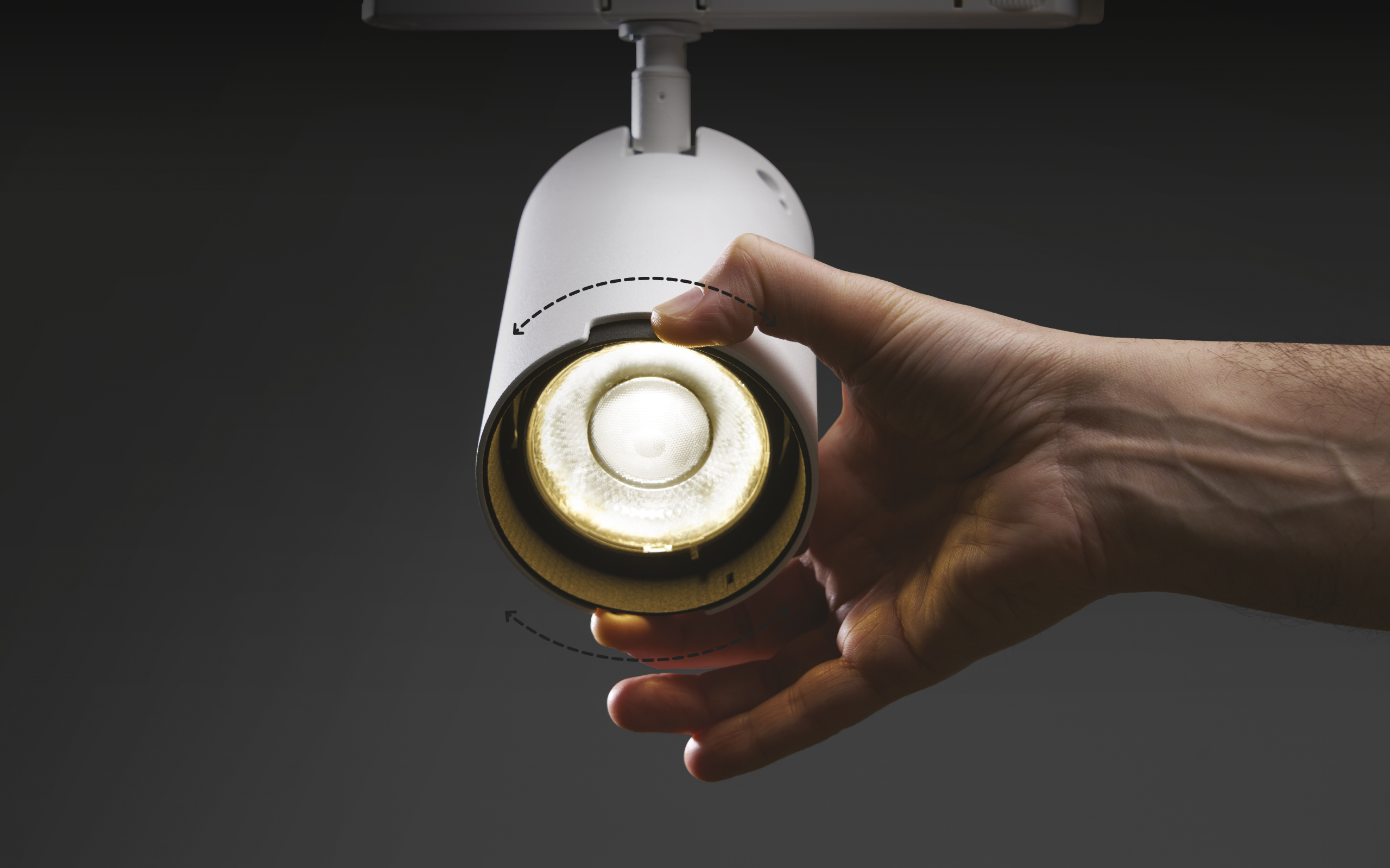

Multimetrik integrates REVO optical technology, offering a regulation system that allows the adjustment of light emission based on specific application needs. The light beam is adjustable from 15° to 60° thanks to the micro-translation of the focal length, ensuring precision and uniformity.

The light intensity can be modulated through an on-board dimmer, whereas, in the EASYMETRIK version, you can choose the color temperature between 2700K, 3200K, and 4000K. The luminous efficiency reaches up to 132 lm/W with flux up to 3500 lm, maintaining a high-quality standard.

The compact design allows integration into Exenia products without altering their aesthetics, ensuring visual continuity with the fixed-beam versions. Interchangeable lenses enable precise and uniform beams, making Multimetrik a versatile solution for various applications.

Available in Medium, Compact, and Max variants, with options for dynamic white (2700K-4000K) or fixed temperatures (2700K, 3000K, 3500K, 4000K), with a CRI of up to 98 and color tolerance up to 2 MacAdam Steps.

Specifications

CCT	2700K 3000K 3500K 4000K DW (2700K - 4000k)
Certification	CE Compliance
Isolation class	Class II - Double insulation
Class F	YES
CRI	92 98
Incandescent wire	650°
Warranty	5 years
Protection class	IP40
Control System	CASAMBI DALI PHASE CUT POTENTIOMETER
Operating temperature	-10° / +35°
Variable Beam Lighting	Multimetrik Full Range 15°-36° / 32°-60° Multimetrik Spot 15°-36° Multimetrik Wide 32°-60°
